Product Overview

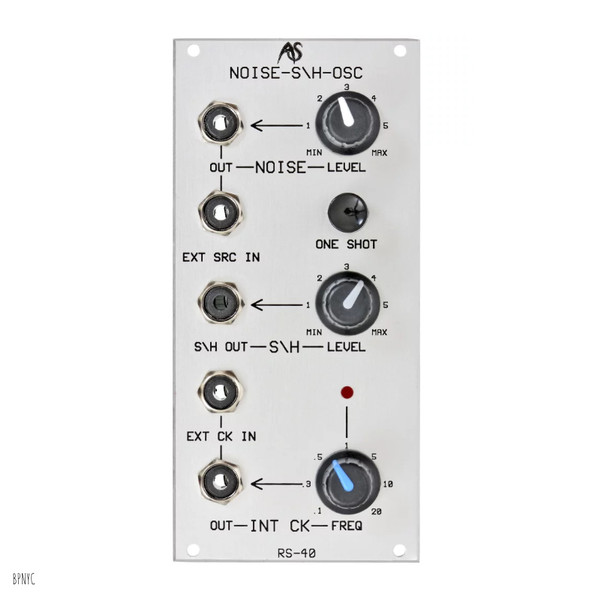

The RS-40 Noise Generator / Sample & Hold / Clock is really three separate ‘sub-modules’ that you can patch together to help generate classic Sample & Hold effects. But effects are far from the only uses for the sub-modules, and they can be patched into other RS Integrator modules for an even wider range of effects.
The noise and the clock provide suitable signals for the use with the S&H unit although they aren´t pre-patched for technical reasons.
The noise generator produces classic analog noise. A potentiometer sets it´s output level.
The sample and hold section is very exact and can hold a value almost infinitely. The signal to be sampled is patched to the "ext src in" jack. The trigger that determins the point of sampling is inserted into the "ext clk in" socket. Alternatively you can trigger the S&H manually with the One Shot button if no trigger is inserted to the jack.
The clock generator produces a pulse wave between 0V and 10V. The frequency can be set in a range of 0.15Hz to 30Hz and is visualized with a LED.
